If you’ve ever navigated an inadequately dampened vehicle on a bumpy road and experienced vibrations strong enough to jolt your organs, you understand that it’s equally challenging for the vehicle. The same forces affecting your body are also at play on every fastener, leading them to loosen and—if you’re driving at a sufficient speed—resulting in a very unfortunate situation.
Frog Racing, a grassroots rally team located in Western Massachusetts, experienced one of those unfortunate situations when a nut securing a ball joint on one of their vehicles came loose during a hill climb. To demonstrate how to avoid such occurrences, they put together an informative yet brief YouTube video—approximately two minutes long—detailing how vibrations influence hardware and what measures you can take.
The initial step is to monitor which fasteners are tightened to specifications and which aren’t by utilizing specialized torque paint. If a nut or bolt begins to become loose, it will break the paint stripe like a wax seal, allowing for immediate identification without needing to use a torque wrench to gauge.
As mentioned in the video, the most frequently used types of nuts and washers are prone to loosening under significant vibration. The duration and rate of loosening might differ, but it will inevitably occur if the conditions are severe. This underscores the necessity of thoroughly inspecting everything when preparing a vehicle for the track or a rally stage.
Loose fasteners on race cars – The torque paint and wedge lock washer method

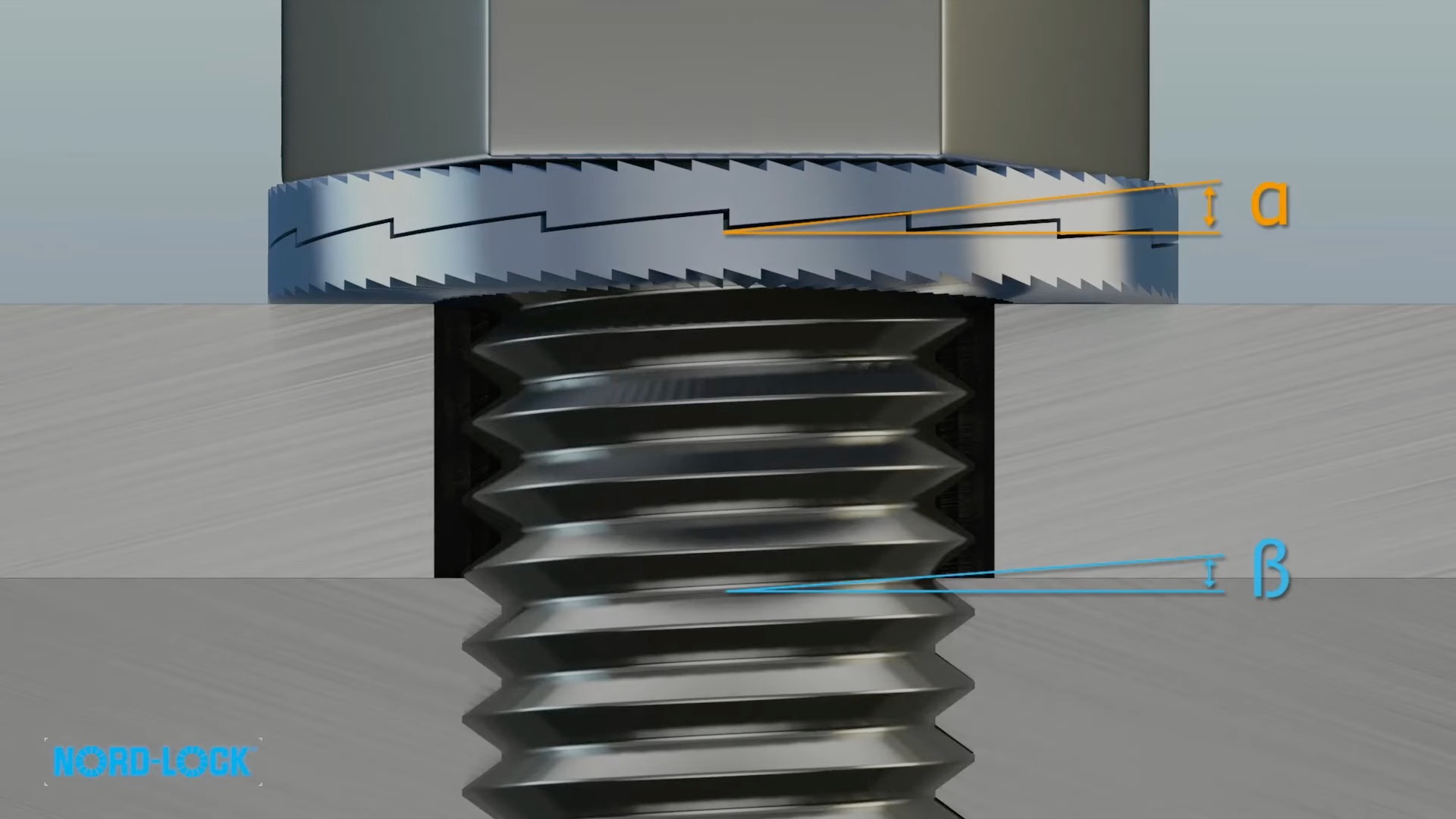

Per the video, wedge-locking washers are ideal for maintaining component stability. These are essentially pairs of washers that interlock through a cam-shaped edge on the interior, coupled with serrated outer edges. Rather than depending on friction, they utilize geometry. The slope of the cam surface (essentially the depression created on the surface below the upper edge) has a steeper pitch than the threads of the bolt. This produces a wedge effect (thus the term “wedge-locking washers”) that is significantly more difficult to counteract with vibrations than the friction between threaded surfaces.
All this is articulated clearly in the video itself, so ensure you take the time to watch it.
Have a suggestion? Share it: [email protected]
### Informative Video: The Effects of Vibrations on Various Automotive Hardware
**Overview**
Vibrations are an intrinsic aspect of vehicle operation, originating from the engine, road conditions, and multiple mechanical parts. Grasping how these vibrations influence automotive hardware is vital for preserving vehicle efficiency, safety, and durability. This article delves into the effects of vibrations on various car components, emphasizing the necessity of addressing vibration-related challenges.
**1. Engine Components**
The engine serves as the core of any automobile, generating considerable vibrations during operation. These vibrations can lead to:
– **Wear and Tear**: Parts such as engine mounts are designed to absorb vibrations. Over time, excessive vibrations may cause these mounts to deteriorate, resulting in heightened engine movement and potential damage to adjacent components.
– **Misalignment**: Vibrations can result in misalignment of engine parts, influencing performance and fuel efficiency. Regular examinations can help avert these complications.
**2. Suspension System**
The suspension system is crucial for ride comfort and vehicle handling. Vibrations can affect this system in various ways:
– **Shock Absorber Fatigue**: Ongoing vibrations can result in shock absorber failure, leading to a bumpy ride and diminished handling capabilities.
– **Spring Damage**: Coil springs may experience fatigue due to continuous vibrations, causing sagging and reduced support for the vehicle’s weight.
**3. Chassis and Frame**
The vehicle’s chassis and frame are engineered to endure numerous forces, though vibrations can jeopardize their integrity:
– **Cracks and Fatigue**: Extended exposure to vibrations can induce cracks in the chassis, potentially jeopardizing safety and structural integrity.
– **Loose Fasteners**: Vibrations can cause bolts and fasteners to loosen over time, resulting in potential failures in essential components.
**4. Exhaust System**
The exhaust system is also susceptible to the effects of vibrations:
– **Pipe Damage**: Vibrations can lead to cracks or fractures in exhaust pipes, resulting in leaks and heightened emissions.
– **Mounting Issues**: Exhaust hangers may wear out due to constant vibrations, producing misalignment and the risk of interaction with other parts.
**5. Electrical Systems**
Modern vehicles heavily rely on electrical systems, which may be disturbed by vibrations:
– **Wiring Damage**: Continuous vibrations can cause wear on wiring insulation, resulting in shorts or electrical failures.
– **Sensor Malfunction**: Numerous sensors are sensitive to vibrations; excessive movement can lead to imprecise readings, impacting engine performance and safety systems.
**6. Tires and Wheels**
Tires and wheels are directly affected by vibrations from the roadway:
– **Uneven Wear**: Vibrations can lead to irregular tire wear, resulting in decreased lifespan and impaired handling.
– **Balancing Issues**: Improperly balanced wheels can intensify vibrations, creating a cycle of wear and potential failure.
**Conclusion**
Grasping the impact of vibrations on diverse automotive hardware is vital for vehicle upkeep and safety. Regular inspections and addressing vibration-related concerns can improve performance, prolong component lifespan, and assure a smoother driving experience. By prioritizing vibration management, vehicle owners can safeguard their investment and maintain optimal vehicle functionality.
